KLF300 Bayou 1994 EU with weak or no spark issues


Go to solution Solved by Mech,

Recommended Posts

Hi, I have an EU '94 KLF300 Bayou with ignition issues. I got it last summer and used it for about 20 hours, then one sunny day we used it for about an hour, parked it, and then it didn't want to start again. It has a *really* weak spark, I've only been able to see it once while testing.

I'm just getting started on this, I'm going to go through all the weak/no spark trouble shootings from the manual. Since I've already invested like 10 hours digesting the manual and forum threads that I possibly can, I thought that it would be nice to create a thread like this in case I come up with a solution that can help someone else.

So far I've replaced the spark plug, I will replace the spark plug cap with a NGK VD05F (5kOhm resistance). I'm going to check the resistance in the pickup coil, stator coil and ignition coil next. I have tried two CDIs, right now I mounted the original CDI which actually gave the most output to the spark plug out of the two :)

A question for you, is it possible to make any assumptions about the CDI by measuring the resistance like in the manual? There's a "resistance table" that you can refer to when measuring between the different connections. I'm asking because I haven't yet seen anyone in the forums that has mentioned that they've measured the CDI resistances and made any conclusions from that.

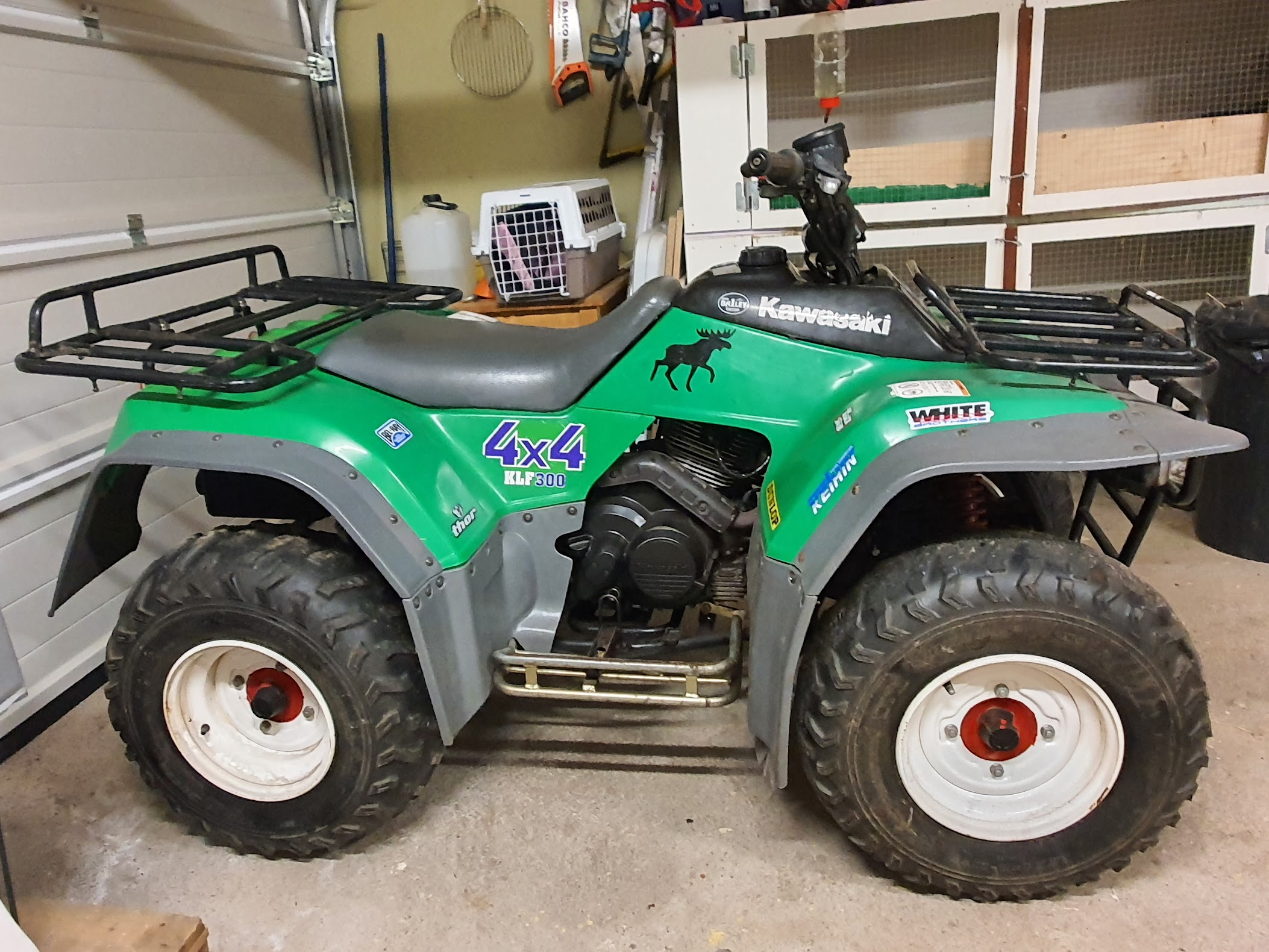

I'll attach a photo of my Bayou :)

Pär, Sweden


  • Like 2
Link to comment
Share on other sites

I haven't read the Kawasaki manual but in the Yamaha , it has you check for power and ground at the CDI, check for Coil wire continuity to CDI, check pickup coil resistance about 550, check anti rotation coil resistance, its low maybe .2, make sure both coils are making voltage, actually the yamaha manual does tell this I added it, it does not tell what the voltage should be, and if all these tests are passed replace the CDI.

Oh by the way, nice looking bike, very good condition, I like the Moose.

Link to comment
Share on other sites

If the books gives a table or resistances for the cdi then yeah sure, do that test.

But if the cdi is firing the spark plug at all it's probably not the problem. I'd suspect the ignition coil or it's lead.

Some modern systems with resistor leads or caps do have very skinny sparks that are hard to see in bright light.. If you have a timing light put that on and see if the spark is regular.

And I suppose you have checked for fuel problems ? Isn't flooded ? Hasn't run out of fuel ? Getting fuel right into the carb ? Have you tried the carb drain screw at the bottom, it might let water out, or reveal a lack of fuel flow if the tap is on.

  • Like 1
Link to comment
Share on other sites

I was reading the book and I see if has several different spark plugs they use, some resistor and some not. If you have a resistor cap which some do, then you won't need the resistor plug, and if you do use a resister plug and cap the spark will be weak looking.

Next, it's not a cdi, it's a twelve volt coil, it has more resistance than a cdi coil. Be careful if buying a new coil. It needs good power and earth connections. It would be a good idea to check the full 12 volts is getting to the coil through the switches and fuses etc.. And that it has a good earth.

You only need to check the one pickup coil resistance, the charging for the battery is a separate system.

Link to comment
Share on other sites

Well Mule, if you've changed all the individual components, surely it must be a wiring problem ?

Have you used an ohm meter to check the continuity of all the wires ?

Have you checked the power supply and the earth with a "voltage drop test" ?

Just using an electrical gauge to check for 12 volts doesn't show up bad connections under load.. The voltage drop test checks how many volts are present under the load the circuit normally carries under operating conditions.

Link to comment
Share on other sites

Mech, thank you for replying. I've only tested for continuity and 12v presence, as that is the limit of the Kline tester I own. I don't have one that is able to either test for peak voltage or ohm's under load. I need to get a better tester but until I can get this thing outta the bay I'm strapped for cash, I also desperately need the repair manual for it but again finances don't allow it currently. I've been stuck in this thing for four months now, and fortunately the customer is extremely patient and understanding (he realizes he talked me into "looking" at it for him). The thing(s) that really gets me is 1. There are literally dozens of threads just like this with nearly identical issues that no one ever posts the cause and repair only that they either sold it unfixed or that they were happy to report it was fixed and they were enjoying using it again, only to never be heard from again when people inquired what the fix was. I have been able to get nearly all my component values/specs off threads like this or through the manufacturers of the replacement parts I've purchased. There was one thread (I thought on this forum) a gentleman posted about having a "hack" for the CDI, he had listed a part number for an ignition coil from auto zone to replace the CDI and it was like $25 vs the $500 that kawasaki charges, however I've had no luck in finding it again.

Link to comment
Share on other sites

I really appreciate the enthusiasm here, thanks! I did a test light run a couple of days ago, it's just wired directly to the spark plug without the cap, video attached. The test light is weakly flashing I think, but the spark itself isn't visible to the eye. I found a video of the spark on a Bayou linked below, where the spark is bright and clear when testing at the same spotas I've tried mine on.

I haven't had time to look at it this weekend, but should get out and check the things you have suggested in the next few days. I'll concentrate on the electric system for now because of the seemingly non-existent spark.

Regarding the carb, it's a China replacement mounted by the previous owner. I haven't checked the carb function at all so far! I got the original carb and it's in as good condition as the bike exterior judging by the look of it, I'll clean it up and mount it in when I get the spark sorted out.. one thing at a time :D

My plan is to start with the "volt drop test", then check the coils, then the CDI. I'll let you know how it goes! @Filthy_Mule777 keep me updated if you find something :)

Bayou spark https://youtu.be/hzZPzaiMRdc?t=90

Link to comment
Share on other sites

4 hours ago, Params_sweden said:

I really appreciate the enthusiasm here, thanks! I did a test light run a couple of days ago, it's just wired directly to the spark plug without the cap, video attached. The test light is weakly flashing I think, but the spark itself isn't visible to the eye. I found a video of the spark on a Bayou linked below, where the spark is bright and clear when testing at the same spotas I've tried mine on.

I haven't had time to look at it this weekend, but should get out and check the things you have suggested in the next few days. I'll concentrate on the electric system for now because of the seemingly non-existent spark.

Regarding the carb, it's a China replacement mounted by the previous owner. I haven't checked the carb function at all so far! I got the original carb and it's in as good condition as the bike exterior judging by the look of it, I'll clean it up and mount it in when I get the spark sorted out.. one thing at a time :D

My plan is to start with the "volt drop test", then check the coils, then the CDI. I'll let you know how it goes! @Filthy_Mule777 keep me updated if you find something :)

Bayou spark https://youtu.be/hzZPzaiMRdc?t=90

Thank you for starting the thread. I'll most definitely share any progress I make or anything else that maybe helpful (if I find such, not to say Mech, that your suggestions weren't helpful because they are I just don't have the means of performing them at the moment, but I appreciate any and all help/ideas/information). The second shorter video was you testing for your spark? If so I really think you should be getting fire even if it is a bit weaker than the YouTube video. Are you sure your getting gas to the cylinder?

Link to comment
Share on other sites

Mule you should start a new thread..  Cut and paste from here and we'll try to get your problem sorted. And have you looked in the manual section on this site for a manual ?

If you have a volt gauge then you can do a voltage drop test.. What it is, is you bridge the suspect switch, fuse, or wire with your volt gauge and if the wire or fuse or switch is good, and has low resistance, then the gauge will show no voltage while there is a load going through the fuse switch etc, but, if there was a dirty contact, some or all of the power would go through the volt gauge and show up as a voltage.

To test a starter solenoid you bridge from one big terminal to the other big terminal with your volt gauge and it will conduct power through the gauge because the solenoids contacts are open.. Then when you press the start button the contacts should close and conduct all the power to the starter. While your finger's on the start button the volt gauge should read zero volts if the contacts are clean.

In your case, to test that the full 12v is getting to the coil, you put the volt gauge from the battery positive to the coil's live wire. With the key on the gauge should show zero volts in theory, but in reality wires have some tiny amount of resistance and so you might see perhaps a quarter volt on the gauge. If it has more than a half a volt showing it's too much and there is some bad connection somewhere between the battery and the coil. You can test the earths the same way. To test the earth you really want to test it under starting load, so you would put the gauge from the battery's negative to the engine or starter body. With the starter not going you will see no voltage, but if you operate the starter and there was a bad connection, or a bad battery lead say, then when you operate the starter some power would go through the gauge to the earth and you would see a voltage.

The advantage of the voltage drop test is that you are testing circuits with the load on them that they are designed to take. Just testing for a voltage with a gauge puts so little load on the circuit that it could have a bad connection/contact, but still have enough power getting through to run the gauge and show full voltage, but when we put the load on the voltage would drop low.

Link to comment
Share on other sites

I couldn't see that link Params..  I think that if the ignition unit on your bike was playing up you would get no spark at all. That unit is only switching the power to the ignition coil on and off, it's not a cdi. It depends on a good full 12 volts to the coil and a good earth.

I suspect you could put a headlight bulb in place of the coil and it should turn on and off as the engine turns over. If there is a full 12v getting to the coil, and a good earth, then when the unit switches the power off to the coil, the coil should make a good spark. If the spark is weak, I'm pretty sure it will be the coil or lead or cap, not the switching unit.

You could test the coil by putting 12 volts through it momentarily and seeing if there is a spark at the instant you disconnect the 12 volts. If you connect one jumper to the coil, and then just tap the other jumper on the other low voltage terminal it should throw sparks.

Link to comment
Share on other sites

On 3/26/2023 at 2:45 AM, Filthy_Mule777 said:

I'll be following this thread, I'm experiencing similar issues with a customer 98  bayou 2x4 KLF300b. I've changed every electrical component on it twice and in a couple instances the times. Still no spark, I am baffled.

Same here on my 86, will follow the post as well have you guys checked out the regulator/ rectifier, I’ve seen similar issues on a snowmobile



Link to comment
Share on other sites

4 hours ago, Pod said:

Same here on my 86, will follow the post as well have you guys checked out the regulator/ rectifier, I’ve seen similar issues on a snowmobile



From everything I've read seen about this particular ATV (it may be different with some other manufacturers) it should be able to run just fine without one at all but it'll only run off battery power until it becomes too weak to initiate a spark. But I'm no expert or even a well informed novice so I may have it wrong and I welcome anyone knowing different to please weigh in on the subject.

Link to comment
Share on other sites

11 hours ago, Mech said:

You are right Mule, those are not a cdi, they are just like an old fashioned points and coil ignition system except the points have been replaced by a transistor and the ignition timing is calculated and adjusted in the ignition unit. The coil and ignition unit both run off the battery.

I just met print and frame this, it's not often I hear that, it maybe it's not often that I actually am, either way after I get it hung up every time have someone disagree or have av difference of opinion, I'm just going to point to that comment hanging so very pompously upon my wall!! Thank you Mech, you made my week!



Link to comment
Share on other sites

Ha..  getting the quad going will make your week..

You need to check the resistance readings in the coil. You use an ohms gauge and measure between the two small wires for the primary winding, and then from the spark plug lead to one of the small wires for the secondary winding.

Link to comment
Share on other sites

On 3/23/2023 at 8:18 AM, Params_sweden said:

Hi, I have an EU '94 KLF300 Bayou with ignition issues. I got it last summer and used it for about 20 hours, then one sunny day we used it for about an hour, parked it, and then it didn't want to start again. It has a *really* weak spark, I've only been able to see it once while testing.

I'm just getting started on this, I'm going to go through all the weak/no spark trouble shootings from the manual. Since I've already invested like 10 hours digesting the manual and forum threads that I possibly can, I thought that it would be nice to create a thread like this in case I come up with a solution that can help someone else.

So far I've replaced the spark plug, I will replace the spark plug cap with a NGK VD05F (5kOhm resistance). I'm going to check the resistance in the pickup coil, stator coil and ignition coil next. I have tried two CDIs, right now I mounted the original CDI which actually gave the most output to the spark plug out of the two :)

A question for you, is it possible to make any assumptions about the CDI by measuring the resistance like in the manual? There's a "resistance table" that you can refer to when measuring between the different connections. I'm asking because I haven't yet seen anyone in the forums that has mentioned that they've measured the CDI resistances and made any conclusions from that.

I'll attach a photo of my Bayou :)

Pär, Sweden


That's one beautiful bike

Link to comment
Share on other sites

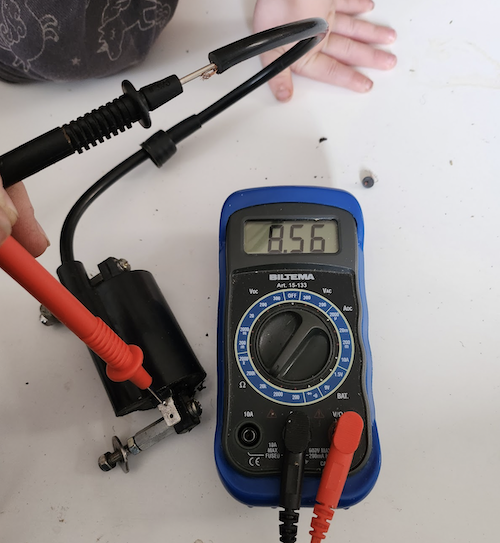

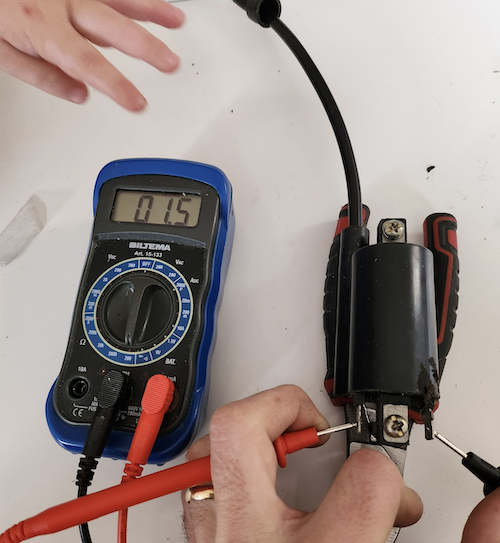

Hi, I got out during lunch and concentrated on the ignition coil like many of you recommended me to. Primary resistance is 1.5ohm, secondary 8.56kOhm. Spec says primary 1.8-2.8ohm, secondary 10-16kOhm. I noticed right away that the coil is a replacement part, probably mounted before I bought it. I wonder if it had the same stats when the ATV worked?

The resistance is lower than the spec on both primary and secondary, would that result in a weaker or stronger spark you think?

Should I do your 12v test on the coil @Mech?

Thanks for your help everyone, I read all your comments :D Off to day care and pick up the kids.

/ Pär

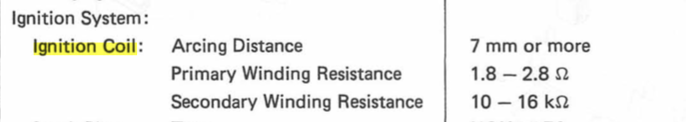

coil resistance manual.png

Link to comment
Share on other sites

And both of you guys, Param and Mule, both need to check your ignition coils are the right sort for 12 volt ignition systems.. The most common sort of coil now is for cdi, and you can pick them up for a few bucks. 12 volt coils are getting rare. Cdi coils are made to run on hundreds of volts. If someone fitted a cdi coil it's not going to make much spark from only 12 volts.

cdi coils have very low primary resistance, about point one or point two ohms. 12 volt coils have a primary resistance of about two ohms.

Link to comment
Share on other sites

Is it just a lighting or shadow thing or is there damage/melted plastic in the first picture right underneath the terminal tab (on the primary/positive +side)? Mech I've got my oem ignition coil on it currently but have tried with both and gotten no spark. I haven't ohmed them both yet (at least not with the factory specs in hand) but I'll do that tonight and post the results.

Link to comment
Share on other sites

On 3/28/2023 at 3:24 PM, Mech said:

Ha..  getting the quad going will make your week..

You need to check the resistance readings in the coil. You use an ohms gauge and measure between the two small wires for the primary winding, and then from the spark plug lead to one of the small wires for the secondary winding.

True, also I'll try to proof read before posting so as to not give anyone an aneurism or brain hemorrhage.

Link to comment
Share on other sites

That coil resistance is too much to be for a cdi. The most I've ever seen for a cdi is, I think.. Er..  point seven of an ohm, as the maximum allowable.

It would appear it is for a 12 volt system, but, it is a little lower than specs which would suggest an internal short.. which would give a weak spark.. The thing a lower than intended resistance would do, is it would draw more current, and strain any bad connections. I think you need to test the coil, then check the wiring.

I think I'd test the coils spark with a known good 12 volt supply.. from the ends of my jumper cables.. If you just tap or wipe the jumper over a terminal so it makes an interrupted connection, it should make a lot of good spark..  five mills easy.

If it does make a good spark with twelve volts, then it's back to checking for the bad power or bad earth I think..

Because the ignition unit only turns the coil on for a fraction of a second before switching it off to produce the spark,  it's going to be hard to find it by a voltage drop.. not with a digital gauge anyway. I think you just have to check things by eye and feel..

Link to comment
Share on other sites

Oh, and another thing..  Most coils need to have the primary terminal they share with the secondary windings, going to the earth. If they are back to front the HT has to earth back to the shared primary terminal, and then back through the primary windings on it's way to earth. The right way round the primary current goes through it's coil and to the common primary terminal, and when the HT earths back it just goes through it's windings to the common primary earth terminal.

There will be a best way around for the coil....

Link to comment
Share on other sites

@Gwbarm I think so as well actually, I'm trying to see if I can make the coil make a spark when connected to a 12v battery, should probably continue testing it.

@Mech I tried connecting the coil to a good 12v car battery, I actually couldn't make a spark. I just connected the positive and negative from the battery to the matching terminals on the coil, and touched the coil "output cable" to the negative terminal on the battery quickly, no spark. I'll try one more time like in the video linked below with a spark plug, that method/wiring should give me a spark right?

youtu . be/oc941J0wh0Y?t=115 (Remove spaces around the dot, I think the forum might strip any links from new users :D video is called "How to check the ignition coil for a spark?" by "Help from the Garage")

/ Pär

Link to comment
Share on other sites

  • Solution

I couldn't see the link Params.

The coil will only make one spark every time you disconnect the power from it's two primary terminals. The spark will be from the HT lead to the negative coil terminal.

If you connect the sparkplug and the jumper to the coils negative terminal, and then just rub the positive jumper clamp on the primary positive terminal it should make and break contact as it scrapes along and make several sparks.

Link to comment
Share on other sites

On 3/30/2023 at 11:05 PM, Mech said:

If you connect the sparkplug and the jumper to the coils negative terminal, and then just rub the positive jumper clamp on the primary positive terminal it should make and break contact as it scrapes along and make several sparks.

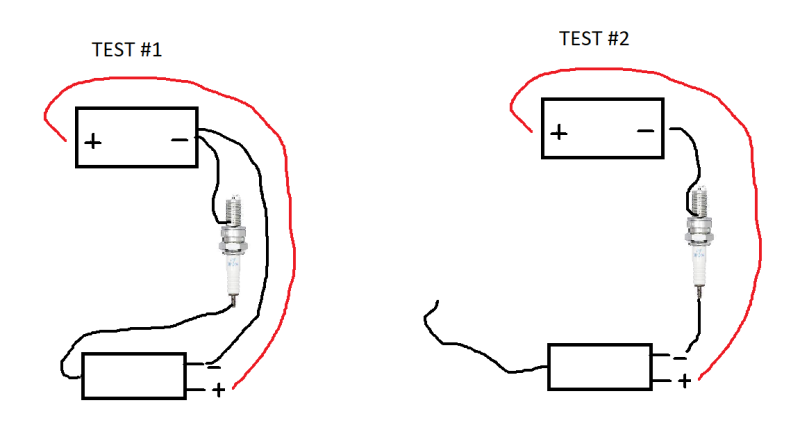

I just ran another test as per your instructions. Coil negative to battery negatile, coil HT with sparkplug to battery negative, then scratched coil positive to battery positive. There were no visible sparks at the spark plug, there were however sparks at the scratching positive jumper.

In the video I attempted to link in my previous message, he got visible sparks at both the scratch contact and the spark plug. I'll redo the test in the dark later to rule out that the spark is just weak. Newly charged battery should be noted :)

At this point the coil really doesn't seem to give any spark, one more test and I'll order a new one, there's two chinese alternatives besides the OEM ones, I'll try ordering the same one as I have now since I know that it worked. I could've just ordered one right away a week ago or so, but I really wanted to investigate and learn more trouble shooting techniques before doing so. Thanks for your patience everyone!

By the way, what does "HT" stand for? (I guessed that it's the "output" from the coil you mean)

To be continued :D

/ Pär
