Misc. Chinese ATV Service Manuals

oxidized_black

By oxidized_black
in Other ATV Brands Forum

 Share

Recommended Posts

  • 3 months later...
  • 1 year later...
Ajmboy Grand Master

Ajmboy

Posted
Posted
On 3/8/2017 at 11:23 AM, linadsenoj said:

Could you post a wiring diagram and/or a service manual for a Sunl SLA90? (I think they were also a TaoTao) that would be great!



Daniel

I haven't seen any for Sunl but hopefully someone will be able to post one. If there is something specific you are working on, start a new topic for help. :)

  • 1 year later...
Slimbob Rookie

Slimbob

Posted
Posted

Hello,

My son got a free ATV from a buddy at work for his son, my grandson. We got it running yesterday but would like a user/repair manual to go over it good.

Here is the info I have on the machine:

Zhejiang Chisheng Industry and Trading Co., LTD

Imported by Seaseng, TNC

110cc Lonsin Engine Family – 6SSGX.125ACH

3spd and reverse transmission

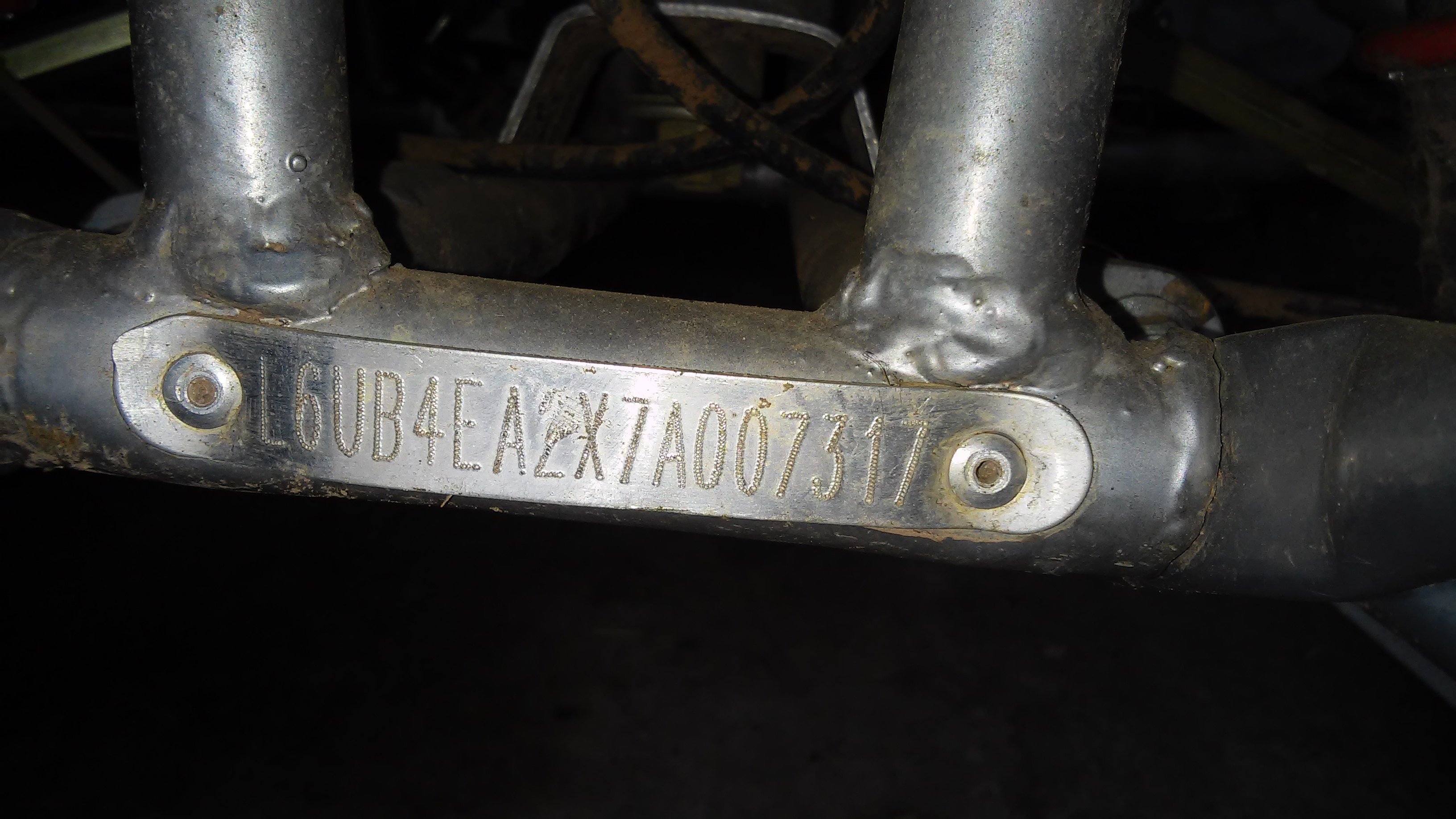

VIN # search - L6UB4EA2X7A007317 - year 2007

I realize this is an old thread, but....

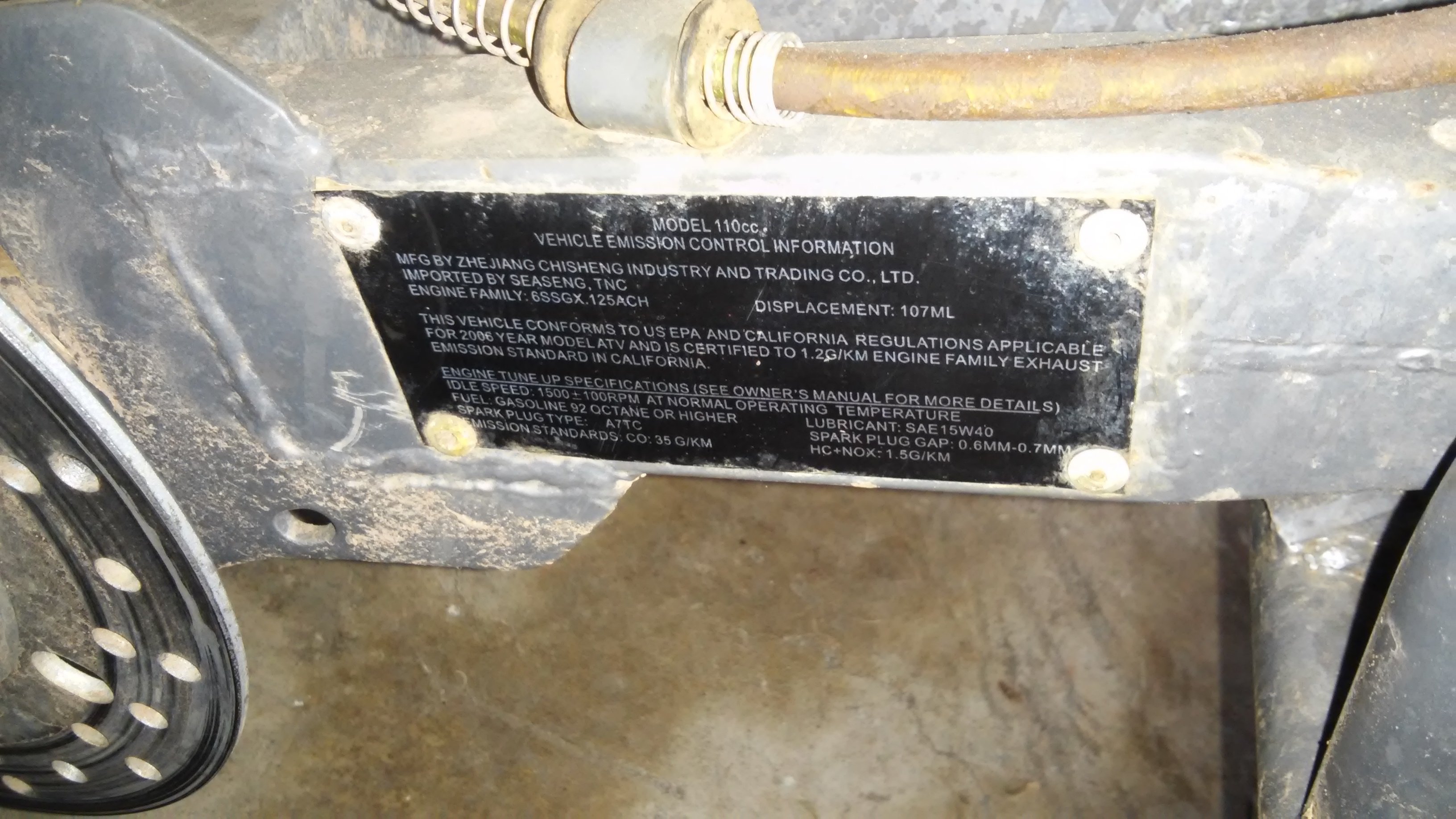

Please see attached pictures.

Thank you for your help,

Slimbob



  • 2 weeks later...
  • 8 months later...
Gilbey Explorer

Gilbey

Posted
Posted

Do these include 2007 250cc Sunl ATV? If so I am very interested as I can get a good deal on one but the guy has no owners/service manual, which I would like to have to get it services and be able to fix things.

  • 2 months later...
  • 1 year later...
dippa Rookie

dippa

Posted
Posted
On 2/28/2016 at 10:08 PM, shalbern said:

Hi,

I just purchased a Tao Tao ATA-125F1 ATV

Does anyone have an owners manual for that ATV?

Thanks in advance.

I'm also looking this manual, did u found it?

  • 1 month later...
skidooer_3 Contributor

skidooer_3

Posted
Posted
On 6/19/2012 at 9:16 AM, Laserguru said:

Dear Oxidized_black,

I bought a used 2006 Chinese 110 atv. Its says manufactured by Zhejiang Chisheng and Imported by SeaSheng Inc. It has a label on the front that says "MDI" and a sticker on the side that says "110ST". Do you have any idea what service manual I would need for this? I can get it to turn over by connecting a wire directly from the "+" terminal of the battery to the starter post but it won't start so I think the starter is ok. The handle bar switch assembly and ignition switch seems ok and the lights work. I need a service manual to know what I got. Any help?

Sound like a solenoid issue.

  • 2 years later...
