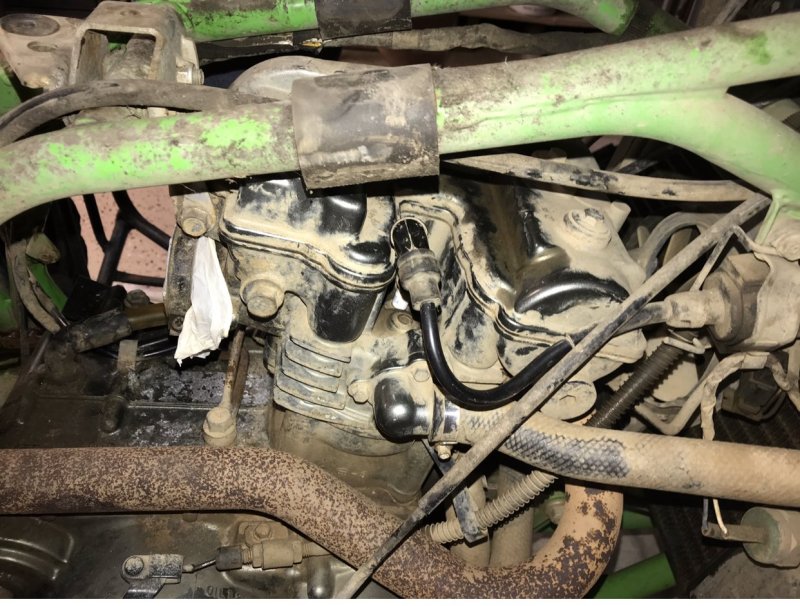

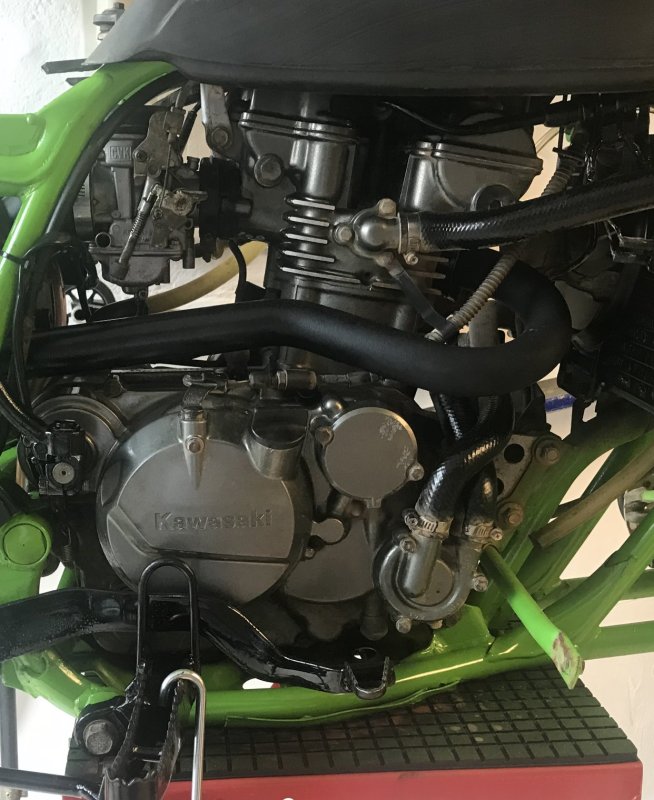

1996 Kawasaki Mojave KSF250 No Spark

Recommended Posts

As for my stator brown brown is 1.2 and brown to ground get nothing

Edited by Chris2018
Wrong word

Share this post


Link to post
Share on other sites


My youngest loves to ride and work on them but I only see him on weekends if he is in the mood to come up. I live in the country so he likes to stay in town sometimes. As far as my girls 2 kids yes can't get them to pick up there shoes let alone a tool

Share this post


Link to post
Share on other sites

Ok well maybe it truly is your cdi. Here  my crazy trick in mentioned earlier It works! If your cdi is damp inside this truck will fix it temporarily but allows you to see if this is the problem.   I did it before and it worked. Don’t laugh.  Do exactly what is shown here then go install it and give it a shot.



Share this post


Link to post
Share on other sites

Yes I have I don't have them touching and I ordered a new one just waiting for it to get here should be here by Saturday. I will deffeinetly give it a try. I also got a new coil bc when I tested that I didn't get any readings. I haven't purchased a new cdi yet bc they are 150 used on eBay and been looking to see if I can pick one up and just rewire it kind of thing

Share this post


Link to post
Share on other sites

The re wire will not work.  Don’t waste your money. If your not getting a reading on the ignition coil wouldn’t you think that’s the problem ?

Share this post


Link to post
Share on other sites

Yea I figured the coil, but I also figured the cdi because the test in the manual for the cdi I didn't get anything when I tested it

Share this post


Link to post
Share on other sites

I’m not sure what test you performed on the cdi because I’ve never seen one testable so that’s kinda throwing me off a bit.

But the coil yes you can test that.



Share this post


Link to post
Share on other sites

Isn't there a test in the manual to run on the cdi? I could be mistaking . But any how thank you for the backing trick it deffeinetly worked. And I just bought a cheap coil off the internet for a few dollars. I been busy and haven't been able to get to the bike in a few days do today I gave the cdi a good bake at 305° for 15 min. Put it on and no spark So I put the coil on and she fired up.



Share this post


Link to post
Share on other sites

So I want to say thank you for the help. And have a couple more questions. I ordered a key switch off line and for some reason. When it's in the off position it's on and when it's in the on position off. An the radiator fan is not kicking on so I'm guess no part of the cooling system is working any ideas. I haven't really looked at it a hole lot. Othe them do say all the wires are ok. And there two wires a blue and a brown wire in the front and by the motor and idea what they hook up to. Everything is hiked up there is nothing for them. I was thinking battery but don't see a spot for a battery. Again thank you for all your help

  • Like 1

Share this post


Link to post
Share on other sites

So you got spark!! That’s great!!!! The cooling system fan will only work when the engine temp gets to its set point.  On the right side of the bike the radiator bottom should have a sensor on it. There should be two wires connected to it.   Take them two wires off of the sensor.  When the engine is running use a jumper wire and jump the two wires. That fan should come on, if so that’s good news as far as the fan working and the power going to it.  The only thing next is to see if the sensor is working. My guess is it’s working fine.  My bike took a while to heat up and come on.  If in doubt swap it out for a new one. I will get back to you with the wire colors for that fan and the wires your talking about that are loose.

Share this post


Link to post
Share on other sites

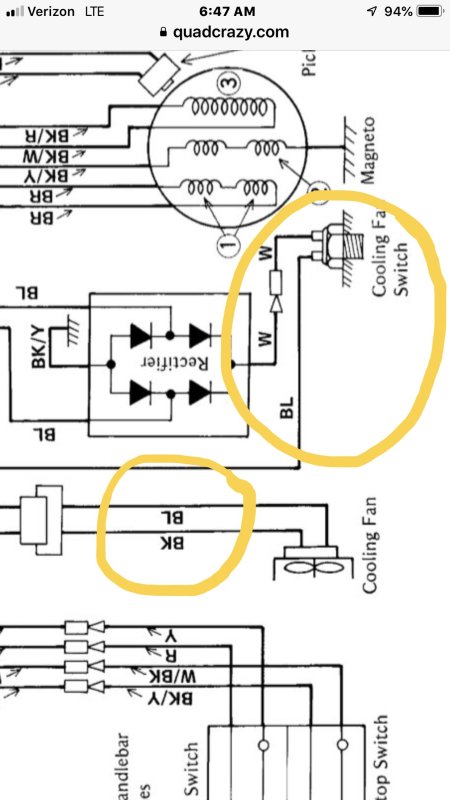

The wires going to the fan and the sensor are circled. Test them as I indicated and see if the fan comes on.  Meantime send me a pic of the wires and the area that they are located in I will see where they go on my machine.


Share this post


Link to post
Share on other sites

Ok thank your you. I will be going out and send them pictures in a few minutes. The sensor you speak off. I believe my is ontop of my radiator. So I just take the two wires off the sensor and tuch the two together ?

Share this post


Link to post
Share on other sites

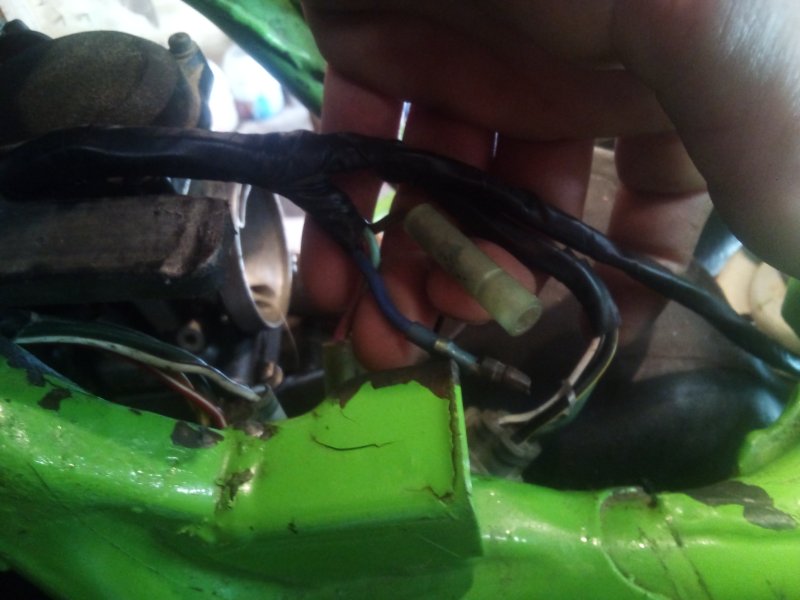

That would be the fan sensor. Jump them and the fan should come on. But the bike needs to be running obviously. As far as the other two I’m going to take a look now.

Share this post


Link to post
Share on other sites

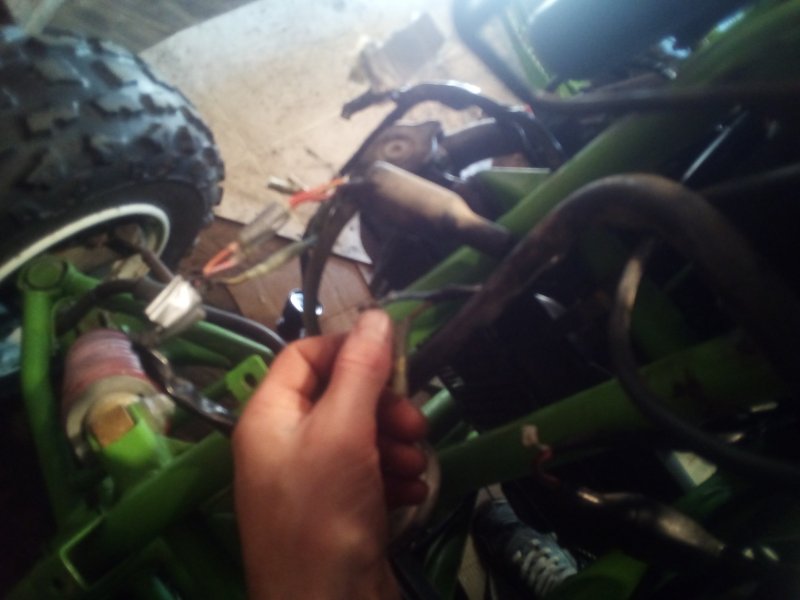

The fan sensor, the wires all in tact ? The blue wires that I see as per the diagram are a 12v positive. The browns I’m not really seeing except for the stator wires.  Double check that it’s not a brown with a stripe on it.  Meantime put a tester on the blue wires and see if the test for 12v positive.

Share this post


Link to post
Share on other sites

If the Mojave is like the Bayou, and I suspect it's pretty close, there are spare wires at the front for accessories.  a 97 Bayou has a few extra brown and blue wires.  Brown is 12V electric ground (not frame ground) post ignition switch I think and blue is 12V lighting maybe?  Been a minute and can't remember for sure but they are usually listed in the wiring diagram as accessory or Canada version maybe?

Share this post


Link to post
Share on other sites
