Chris2018

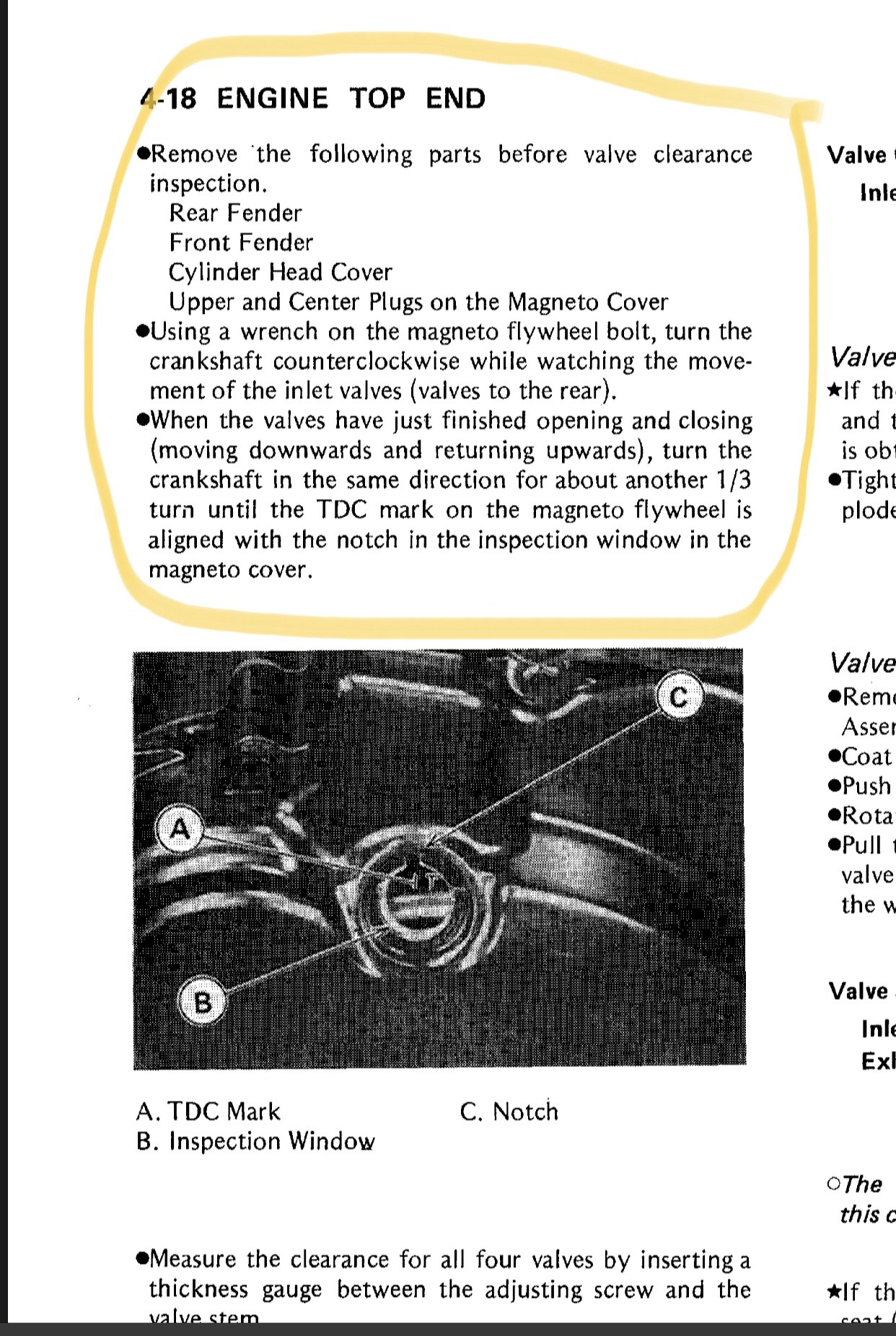

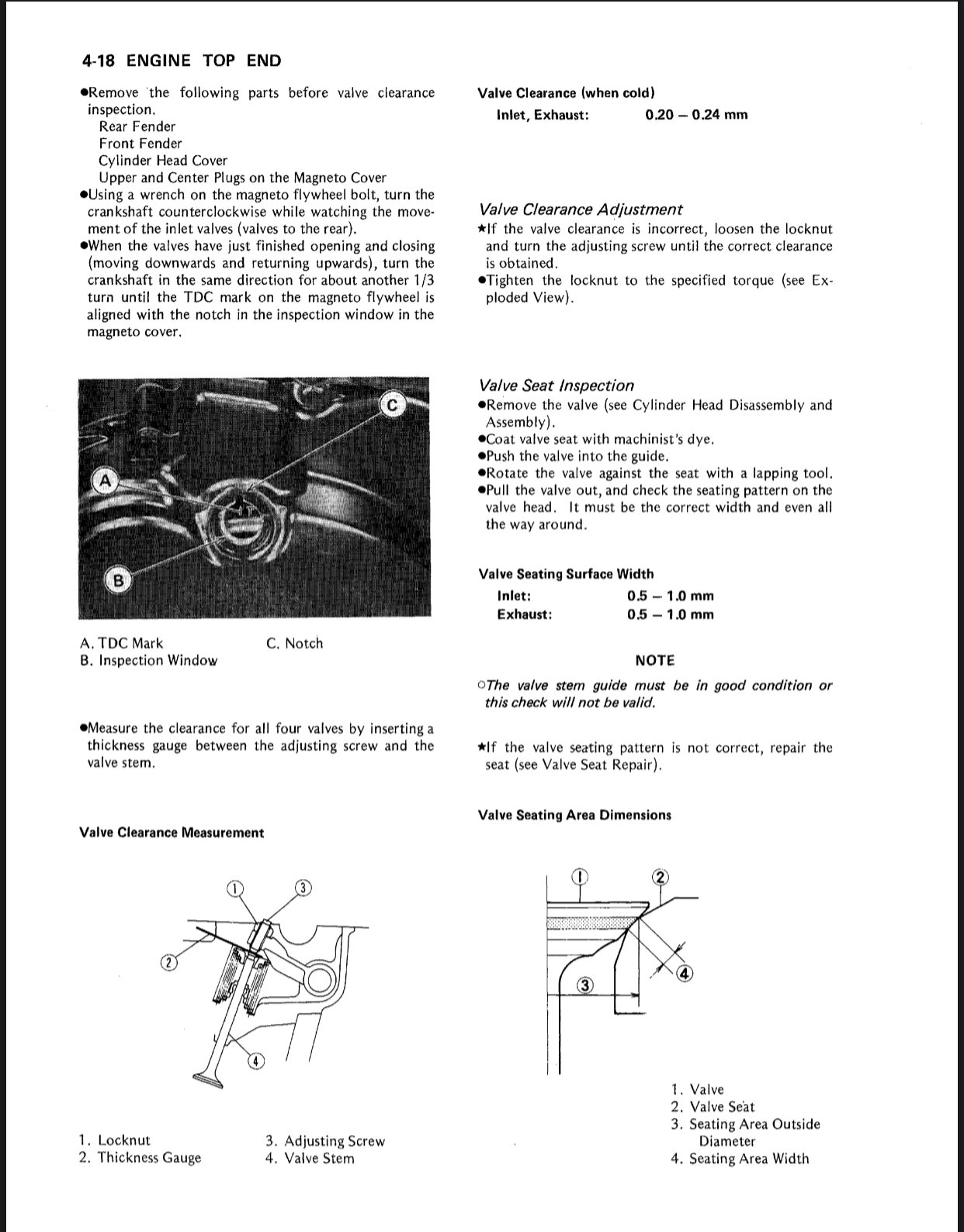

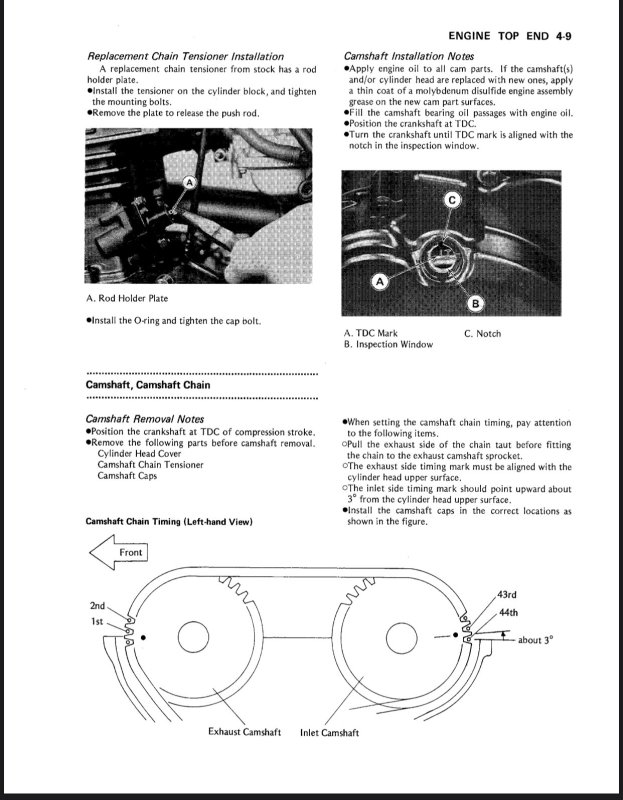

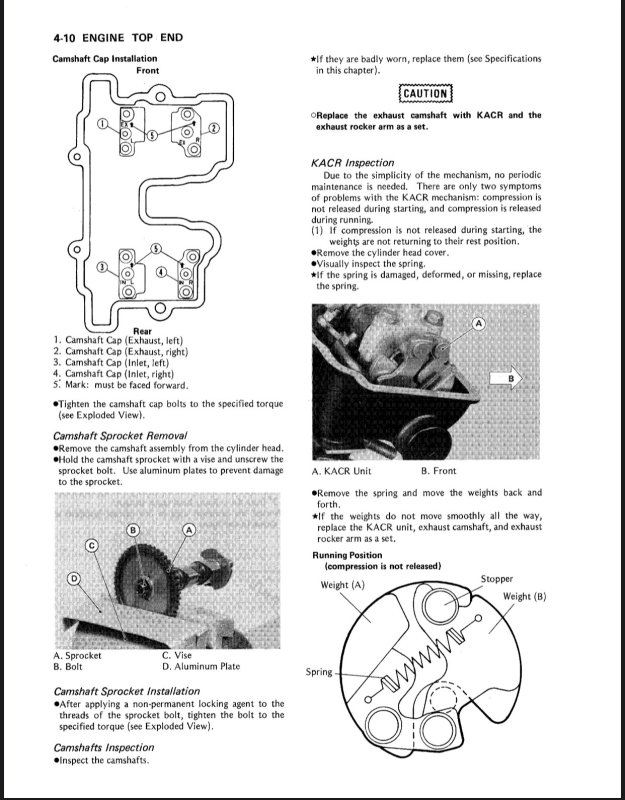

1996 Kawasaki Mojave KSF250 No Spark

Recommended Posts

I was wrong on the brown if I understand the partial wiring diagram above correct.  Looks like brown is a metered 12V post rectifier and blue is from the magneto which would indicate likely lighting. So probably spares.  The Bayou had like 3 extra browns and at least one blue...they were all for accessory.  Good place for a winch or extra lighting i guess!

Share this post


Link to post
Share on other sites


Maybe extra lighting at best because this bike has no battery. It’s self reliant as far as power goes so you really couldn’t add much more onto it.

Share this post


Link to post
Share on other sites

Ok I just wasn't sure. Is there any other test Incan check to make sure the switch works correctly so I don't have any issues with it getting hot on me

Share this post


Link to post
Share on other sites

Have you jumped the fan to see if it runs ?

If so the second test would be to remove the sensor from the radiator and connect a tester to both leads of the sensor and put the tester on continuity. There should be no reading while it’s cool.  Then put it in a small pot of water (just the sensor part) and as the water heats up the sensor should close giving you a reading. It should close at about 185-190 deg.

Edited by Frank Angerano

Share this post


Link to post
Share on other sites

Ok figured the blue and brown wires.  They are for your rear brake light. One is by the carburetor should run to a brake switch on the rear brake petal.  The second set up by the front goes to the right brake handle lever.

Edited by Frank Angerano

Share this post


Link to post
Share on other sites


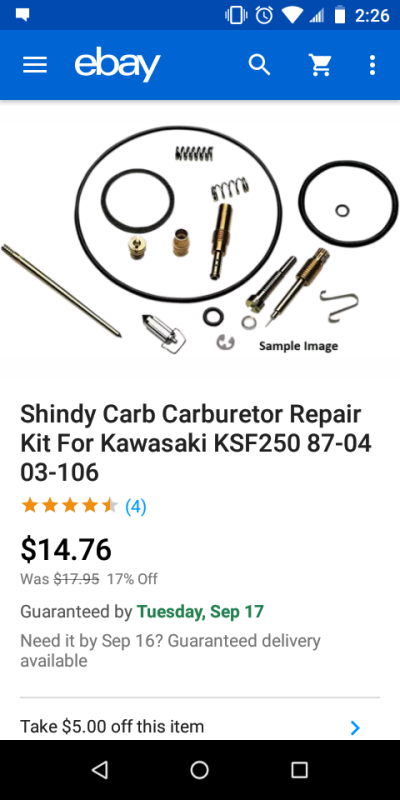

Thanks for the help, everything seems to be in working order for the most part. Just trying to figure out this crab. I got it all cleaned up, it was real bad on the inside. But for some reason as soon as you put it in gear and give it gas it spits and sputs  but if it's just in neutral it's fine@MarkinAR

Share this post


Link to post
Share on other sites

Double check and don’t make the same mistake I made. Make sure you put the right jets back in the right spot. When putting the carb back together the pilot jet and the main jets are the same thread. I reversed them and the bike died at as soon as I put it in gear.

Edited by Frank Angerano

Share this post


Link to post
Share on other sites

I thought I might have mixed them up. One is actually shorter then the other but can't see what one goes where lol

Share this post


Link to post
Share on other sites

Ha. I did that on a big bear. 2nd pilot is a 74 and main is a 115 or something. Doesn't run quite right with them backwards. Identical jets though...

Share this post


Link to post
Share on other sites

I couldnt get it to run right for nothing run great at standstill but as soon as I put it in gear just spit and sputter. It would go but just kept cutting out. I kept trying the mixture screw and nothing would fix it. I'm checking now to see if that's what happened

Share this post


Link to post
Share on other sites

I went out last night and bought some paint. I was just going to beat it around but figured I have this much time into it already why not fix what needs to be fixed clean it up nice and go from there. I've never actually painted one or gone full out to fix them the right way. Normally cut corners and beat it until it's done. But going to put some effort into it. Will post some pictures later for befor and afters

Share this post


Link to post
Share on other sites

I'm getting ready to put it together now and go try it. As far as paint I had my girl pic it up while she was out last night. I told her Kawasaki green she came back with. I mean it does match what someone else already used to paint it once but not what I'm looking for I don't think. She tries though


Share this post


Link to post
Share on other sites

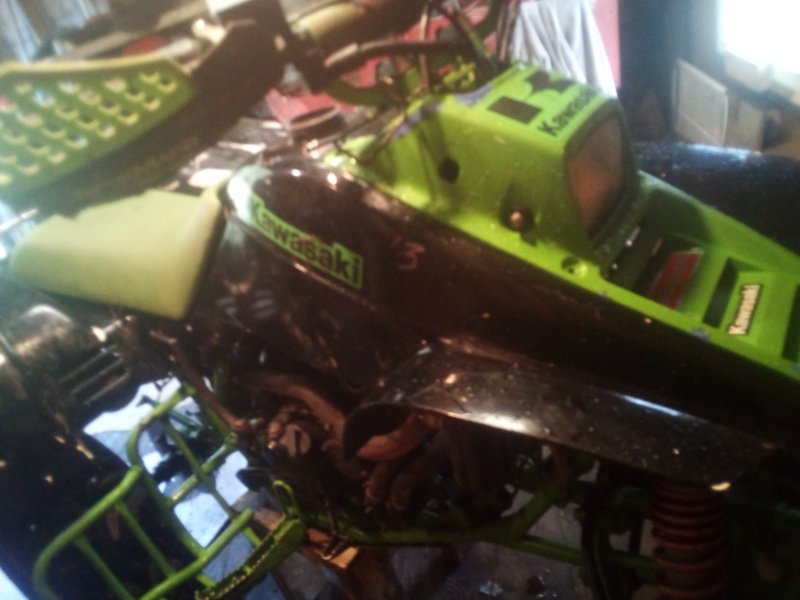

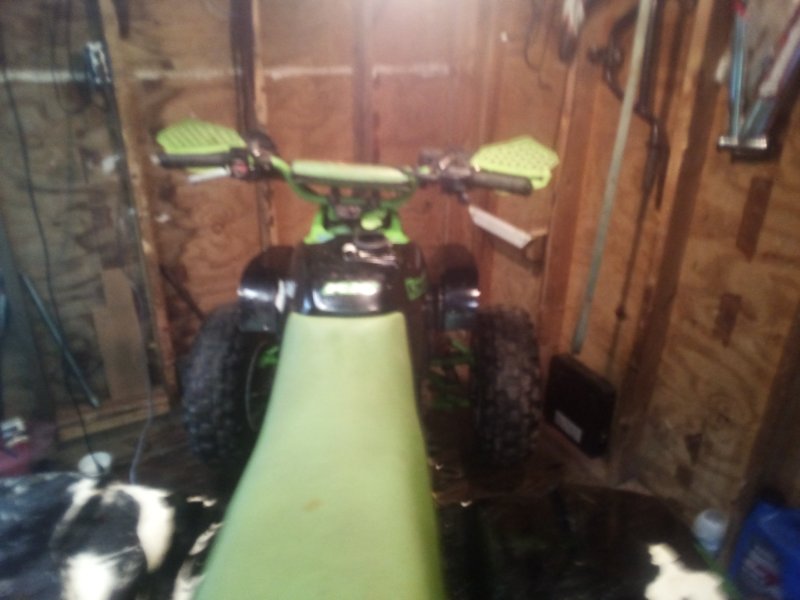

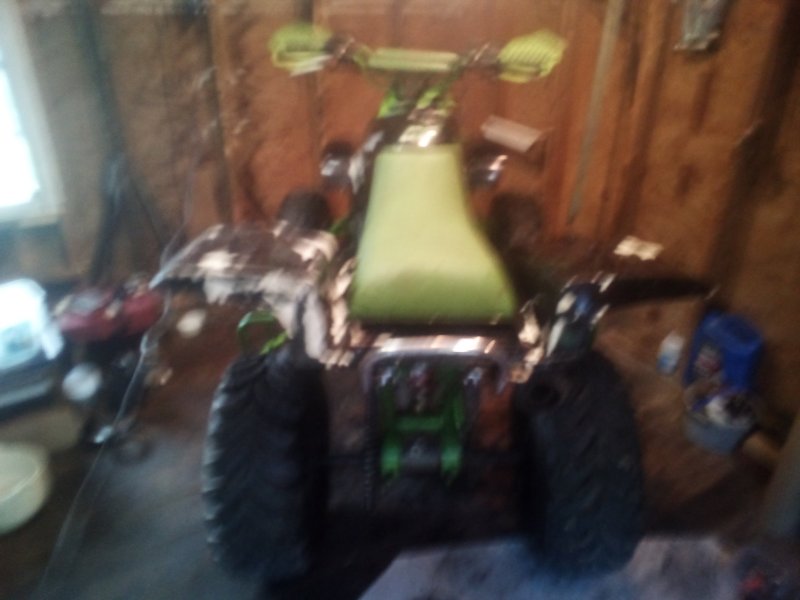

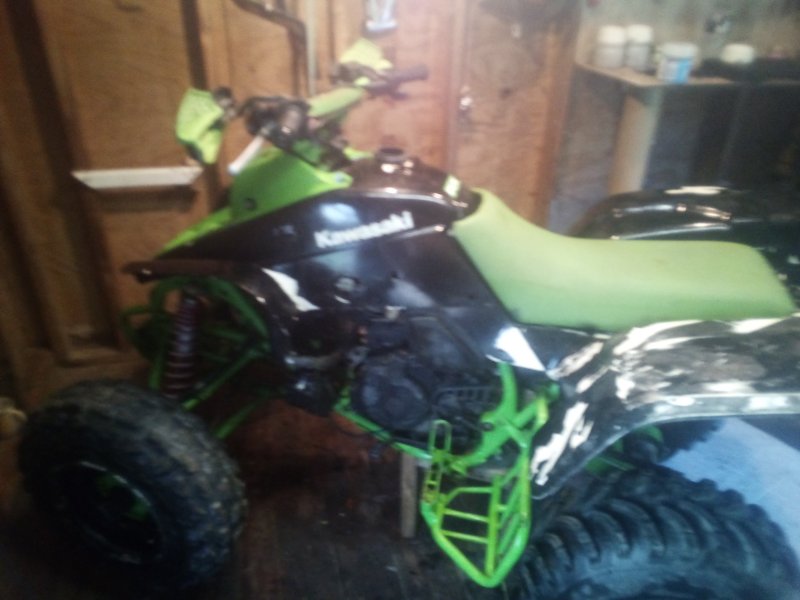

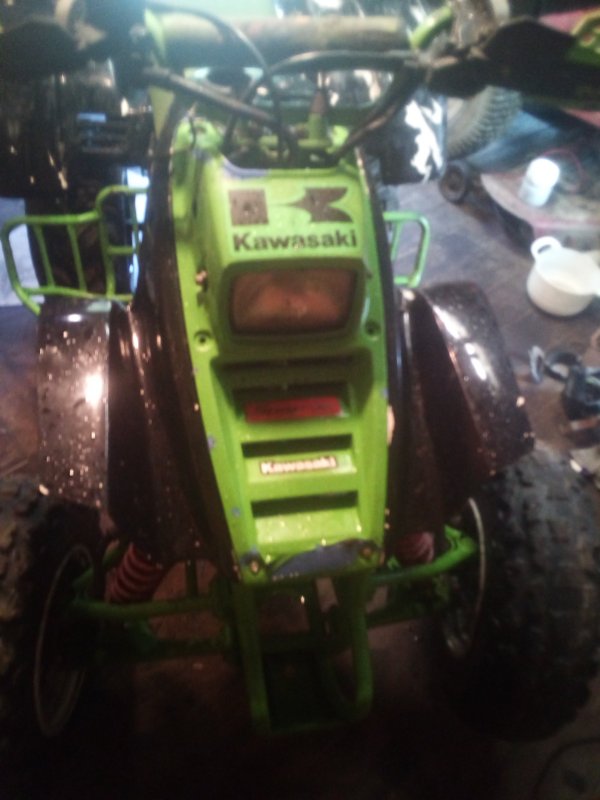

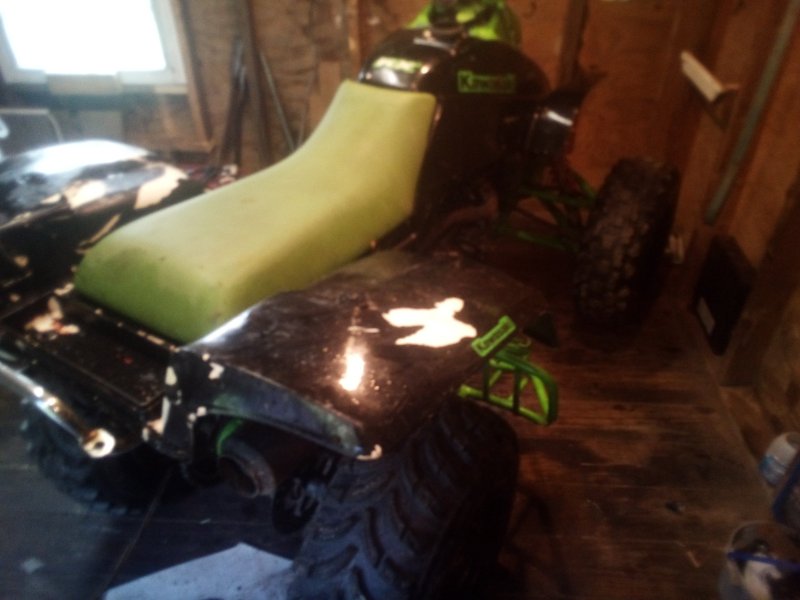

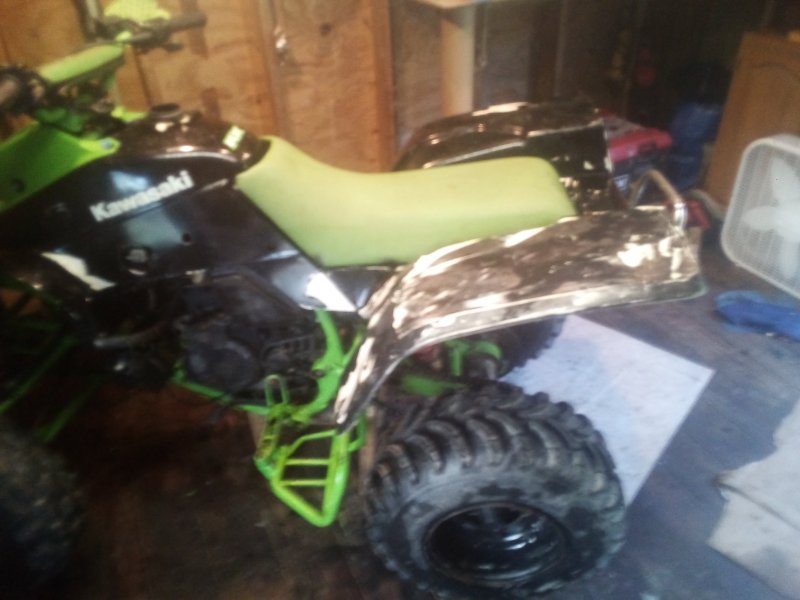

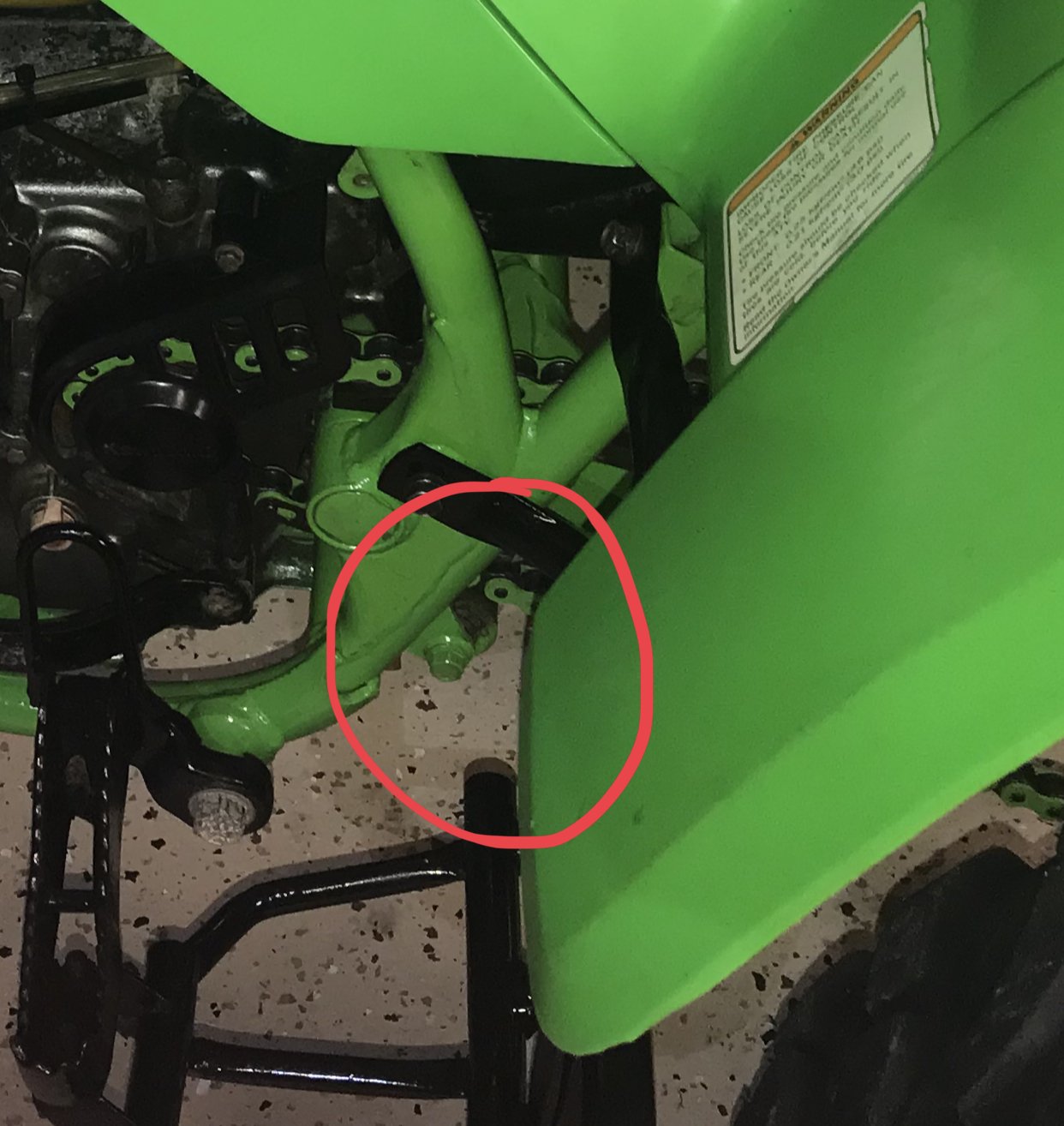

Here are a few pics of the work I did. The color I found on eBay and Amazon.

PJ1 Color Matched Frame Paint 99-02 Kawasaki Green 12 oz. https://www.amazon.com/dp/B00230IC3M/ref=cm_sw_r_cp_api_i_UO6DDbBDAQ4ZW

The other colors are standard gloss black for nerf bars and then high heat satin finish on the exhaust.

The aluminum portion (silencer)  I used an aluminum polish called mother’s.  It’s great for all soft metals.

Mothers 05101 Mag & Aluminum Polish - 10 oz https://www.amazon.com/dp/B0009H519Y/ref=cm_sw_r_cp_api_i_GT6DDb4RMNXGF







Share this post


Link to post
Share on other sites


That looks sick. You did a nice job. You use a spray gun or cans. Oh and the main hey is the one with the needle coming in from the other side right? And that gets the smaller hike correct?

Share this post


Link to post
Share on other sites

The main is the one with the needle. It gets the larger of the two jets. They have numbers on them. Mine were not legible due to being what looks to be worn or sanded maybe during the cleaning process of the previous owner. So if you can read the numbers then lol at the carburetor section of your manual and it clearly explains where they go.  But for sure the larger hole jet is at the needle location.

Yes all can spray. Wire wheel in a drill and sand paper. I spray a good prep coat on before and spray away!  The prep coat is a clear type coat that helps the new paint stick well.



And FYI all of this material I bought on line for $125 bucks. That includes the new color matching chain and I was missing the air factory box.  That air box assembly was $45 so really it cost me $80 if I wasn’t missing that air box.  That chain was only $20 bucks.

Edited by Frank Angerano

Share this post


Link to post
Share on other sites

Well I think I might have had them in wrong. I seen one was shorted then yhr other so just guessed that it was on top of the other piece lol. And the pain does look real good. I don't think I will be able to do as well but give it what I got

Share this post


Link to post
Share on other sites

Still not working right actually a little worse this time. But if I stick a rag in the end of the air filter box everything works great

Share this post


Link to post
Share on other sites
